1746-NI8 Series A 1746-N18 Allen Bradley Module SLC 500 Analog Input 8- Ch 2.0

New Allen Bradley 1746-NI8 Series A 1746-N18 SLC 500 Input Analog Input 8-Ch 2.0

Quick Detials

• ALLEN BRADLEY

• 1746-NI8

• 1746NI8

• INPUT MODULE

• 8 POINT

• ANALOG

• 20 MA

• 10 VDC

• FAST SIGNAL CONVERSION

• one year warranty

Specifications:
The 1746-NI8 is a SLC 500 Analog I/O Module. This Analog I/O Module has 8 Inputs and a Backplane Current (5 Volts) of 200 milliamps. It has a Bandwidth of 1-75 Hertz and an Update Time of 6 milliseconds.

About 1746-NI8

The 1746-NI8 is an analog single-slot I/O module for the SLC 500 system. It is a high-resolution analog input module with high-density components and it can be configured by the user with software. It is suitable for time-sensitive applications that require fast analog signal conversion and high accuracy. The 1746-NI8 module has an 8-Channel input with an isolated backplane. Its backplane current consumption is 200mA and 100mA at 5 Volts DC and 24 Volts DC respectively. It has a maximum backplane power consumption of 1 Watt at 5 Volts DC and 2.4 Watts at 24 Volts DC. The 1746-NI8 can be installed in any I/O slot, except Slot 0 of the SLC 500 I/O chassis. It can be converted to digital operation with successive approximation and using the switched capacitor. The 1746-NI8 module uses programmable filter frequencies with a low-pass digital filter for input filtering. It performs continuous autocalibration and has an isolation voltage of 750 Volts DC and 530 Volts AC, tested for 60 seconds. It has a common-mode voltage ranging from -10 to 10 Volts with a maximum of 15 Volts between any two terminals.
The 1746-NI8 module comes with a removable terminal block of 18 positions. For wiring, the Belden 8761 or a similar cable must be used with one or two 14 AWG wires per terminal. The cable has a maximum loop impedance of 40 Ohms at the voltage source and 250 Ohms at the current source. For troubleshooting and diagnostics, it has 9 green LED status indicators. The 8 channels have one indicator each to display the input status and one each for displaying the module status. The 1746-NI8 has a Division 2 hazardous environment standard with an operating temperature of 0 to 60 degrees Celsius.

Technical specifications:

MORE INFORMATION

DELIVERY

Logistic partners UPS, FedEx and DHL

International delivery available

Same day dispatch from group stock


WARRANTY

All parts new are covered by Shenzhen Viyork 12 month warranty


RETURNS

No hassle returns policy

Dedicated customer support team


PAYMENT


Trade credit

We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.


Payment options

We accept Bank transfers and the following methods of payment:

Western Union PayPal VISA


Pls contact us:

Company: Shenzhen Viyork Technology CO.,LTD
Cotact:Miss Liu
Moblie/WhatsApp: 0086-13826534820
Email: shenzhenviyork@163.com
Skype:live:.cid.ba9401e01ca235c2

allen bradley memory module

plc processor module

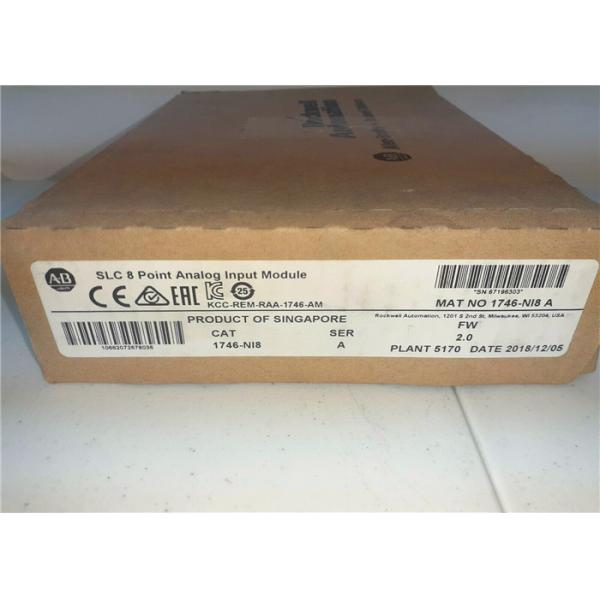

1746-NI8 Series A 1746-N18 Allen Bradley Module SLC 500 Analog Input 8- Ch 2.0 Images
